As simple as changing a bulb
Blue Wolf’s NVIS Rectangular Dome light is designed for illuminating instrumentation or large cargo bay lighting areas used in Night Vision Environments such as aircraft cockpits, tanks, boating vessels, or other applications.
The Blue Wolf Dome light can be used to upgrade older incandescent Grimes B3550 Dome Light fixtures with NVIS compatible LED technology.
The low profile design, matching screw mount locations and (optional) BA15 connector make upgrades as simple as changing a bulb. No wiring necessary.
The NVIS LED white light produced allows for easy viewing without “greening out” important indication colours such as “reds” and “yellows”. Made out of a durable solid aluminium construction, this NVIS Rectangular Dome light can be installed almost anywhere.
- Easy installation for illuminating cargo or cabin areas. (Optional BW-152 mounting plate available)
- Optional BA15 connector
- Coast Guard NSN# 6220-01-HS2-7742
Quick data specs
- Operating Voltage: 28 Vdc Typ.
- Operating current: 120ma
- PWM Dimmable from 0 to 100%
- NVIS Compliant MIL-STD 3009
- Mass: 3.4 oz.
- Material: Anodized Black 6061-T6 Aluminum
- DOD-160 section 8 Tested
- Adapted for retrofits – Grimes B3550
Related Products

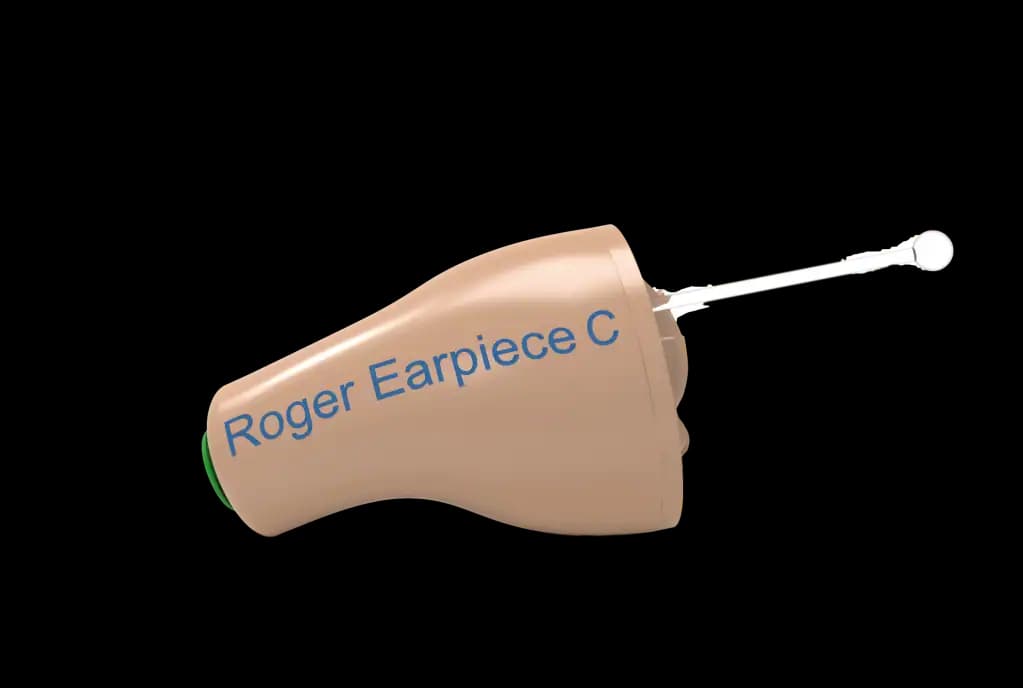

Roger™ Earpiece C
The Roger Earpiece C is a masterpiece of miniaturized technology. It offers best-in-class secure audio reception on 2.4 GHz with AES-128 encryption. Discreetness and a comfortable fit within the ear canal are guaranteed, thanks to its ergonomic design. It can recognize both personal and car networks as selected via the Roger Remote C, and has 12 hours of autonomous operation.
Profilo Nano
Phonak’s transductive loop technology is the only analog transmission technology that guarantees wearers of in-ear receivers 100% interference-free communication. The crackling and hissing in the ear caused by electromagnetic interference (EMI) from alarm systems, vehicles and other electronic circuits can quickly lead to unclear communication and, in the worst case, can cause undercover investigations to fail. Similarly, failure can also result from a large and obvious earpiece being spotted by a surveillance target

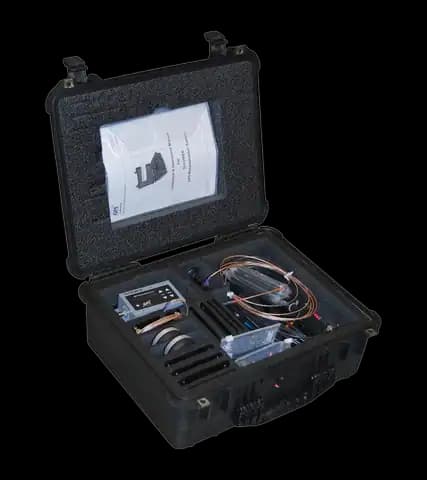

GLI Cobra Repeater Kit
